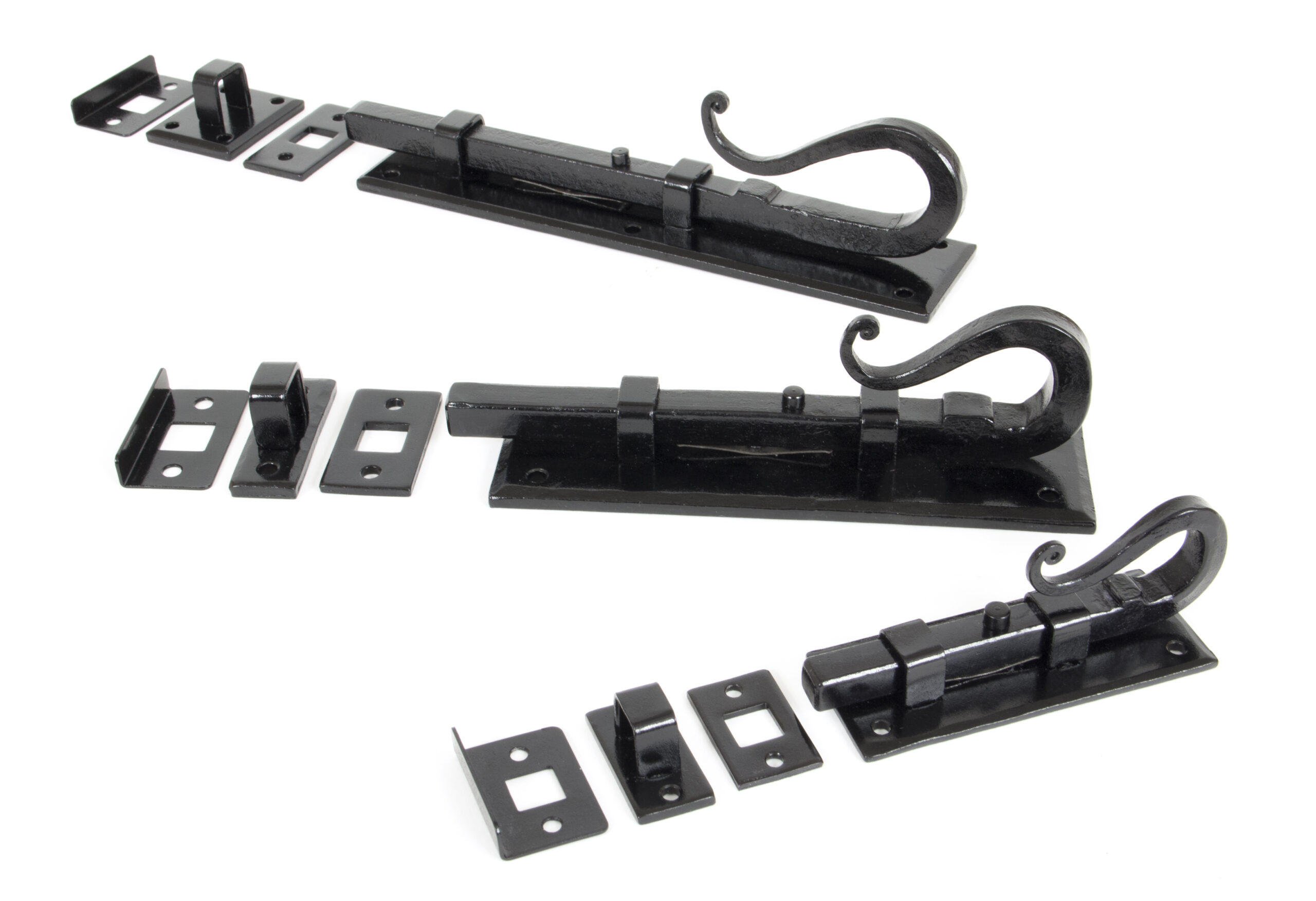

We have an extensive range of door, window, french and flush bolts, ranging from 4″ to 12″.

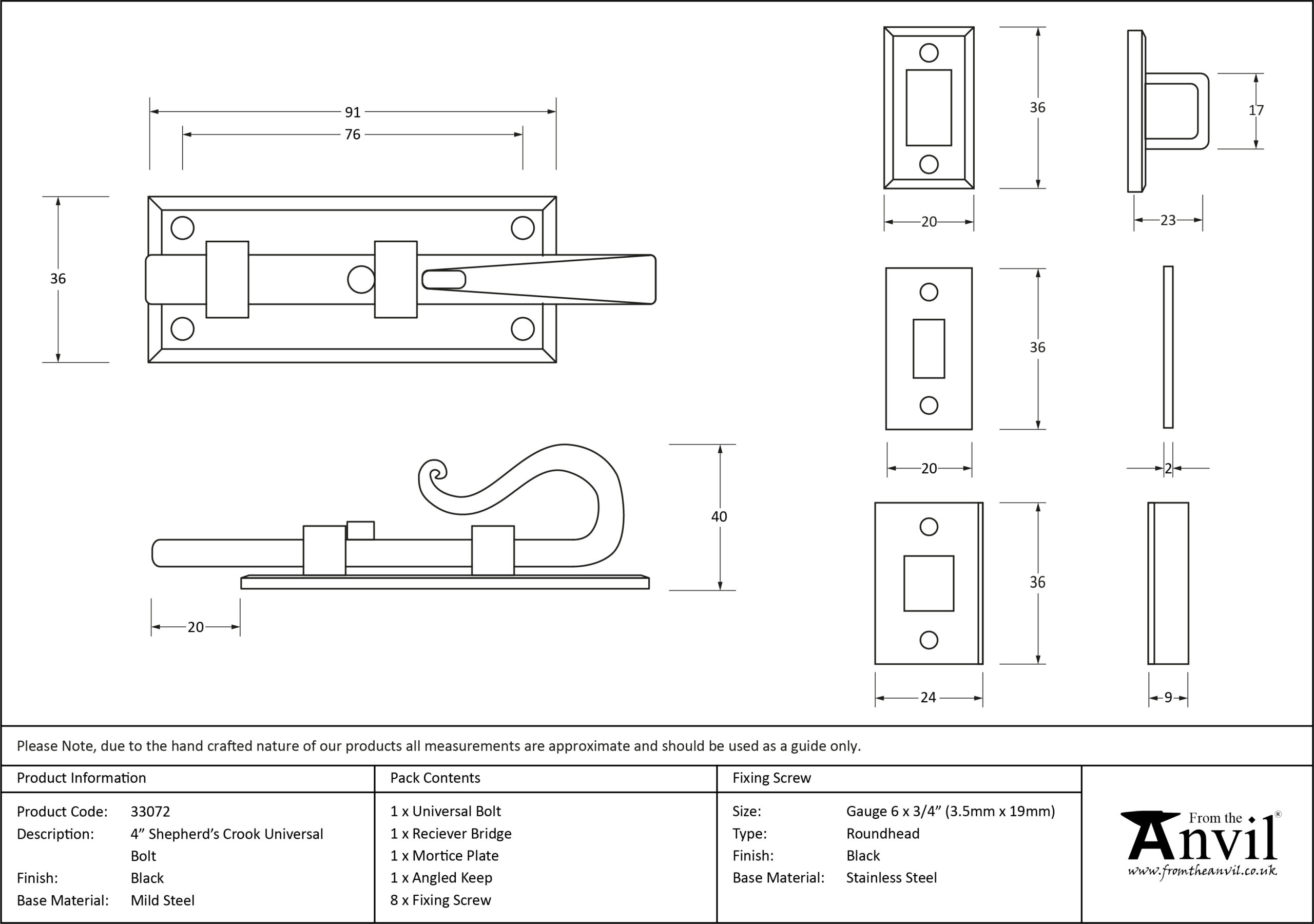

Fixing Plate: 91mm x 37mm x 3mm
Receiver Plate: 33mm x 21mm x 2mm
Receiver Bridge: 37mm x 19mm x 3mm (Height: 18mm)
Angled Keep: 37mm x 25mm x 1mm (Depth: 10mm)
Throw: 20mm
Receiver Bridge Height: 16mm

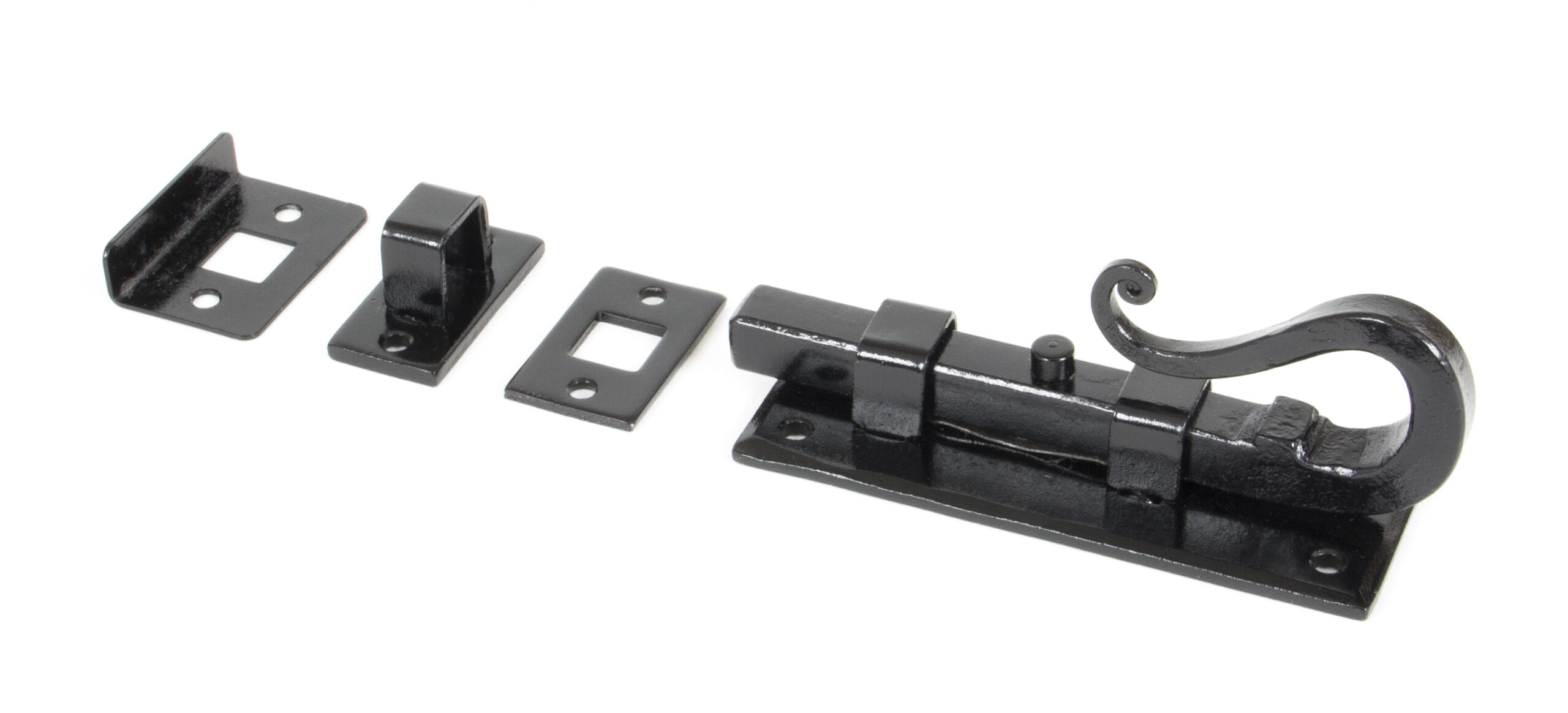

A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product. Designed to match the shepherd’s crook window furniture in the range. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
Finish: Black
