We have an extensive range of door, window, french and flush bolts, ranging from 4″ to 12″.

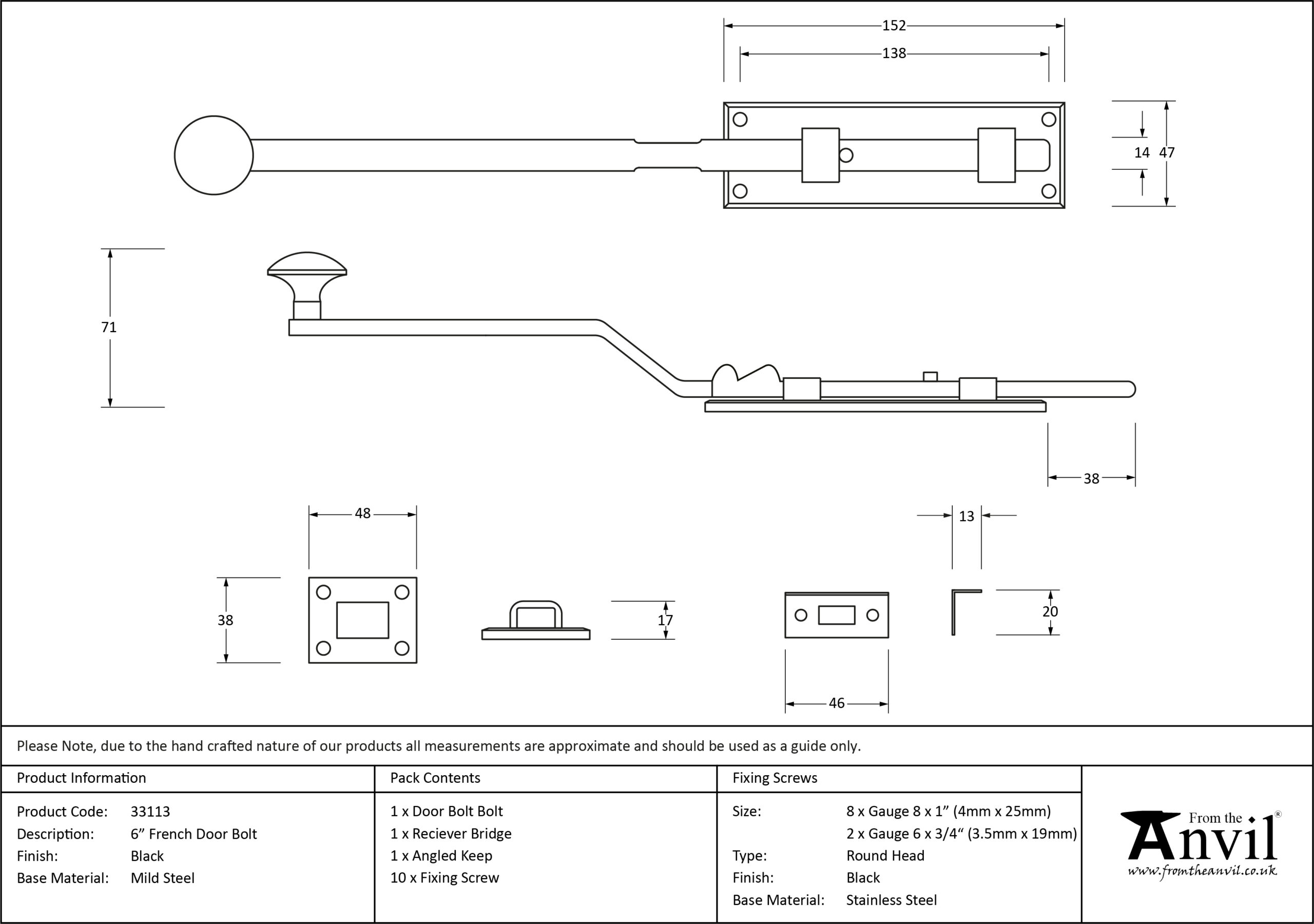

Overall Length: 394mm
Projection (Handle Arm): 72mm
Fixing Plate Size: 153mm x 47mm x 5mm
Receiver Bridge Size: 48mm x 38mm x 5mm
Receiver Bridge Height: 17mm
Angled Keep Size: 46mm x 20mm x 1mm (Depth: 13mm)
Throw: 40mm

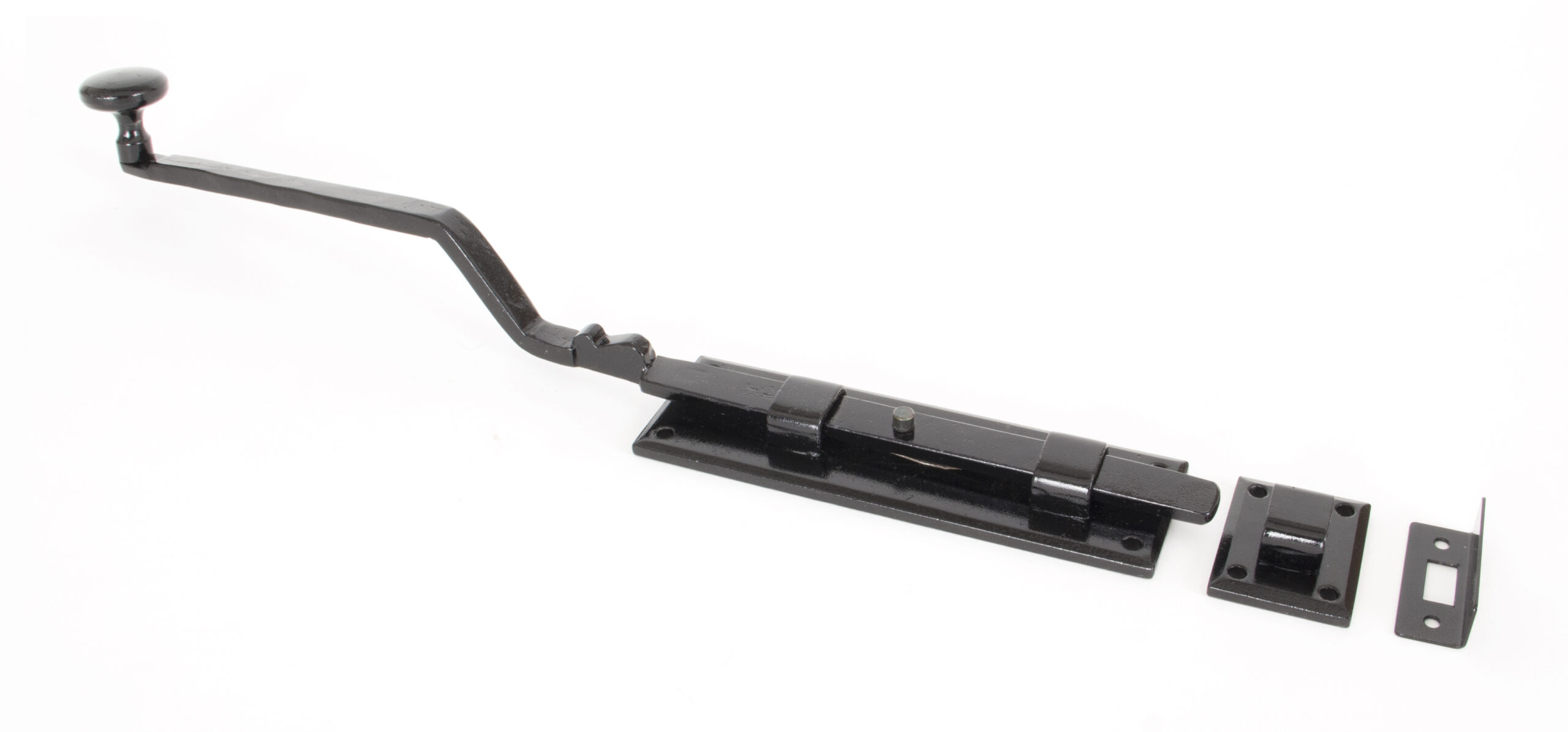

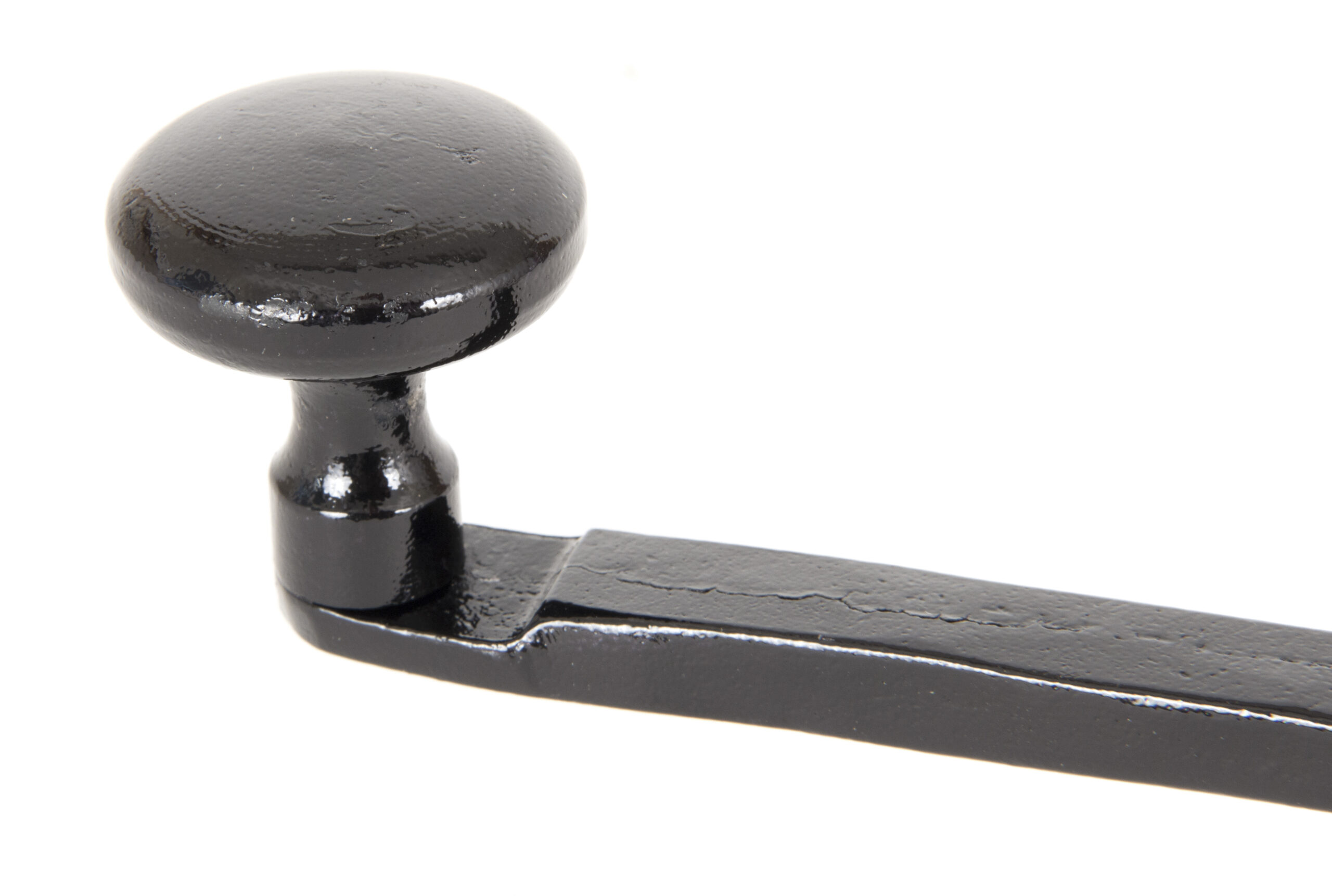

Features a long cranked handle for ease of use and can be used on inward or outward opening doors due to a variety of keeps supplied with the product. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
Finish: Black
