We have an extensive range of door, window, french and flush bolts, ranging from 4″ to 12″.

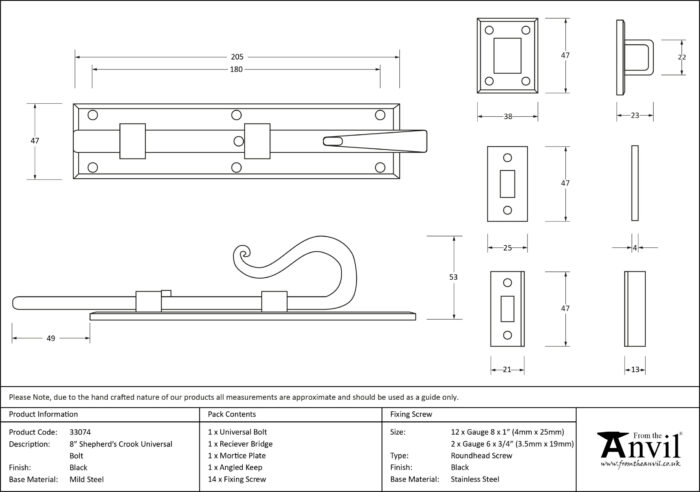

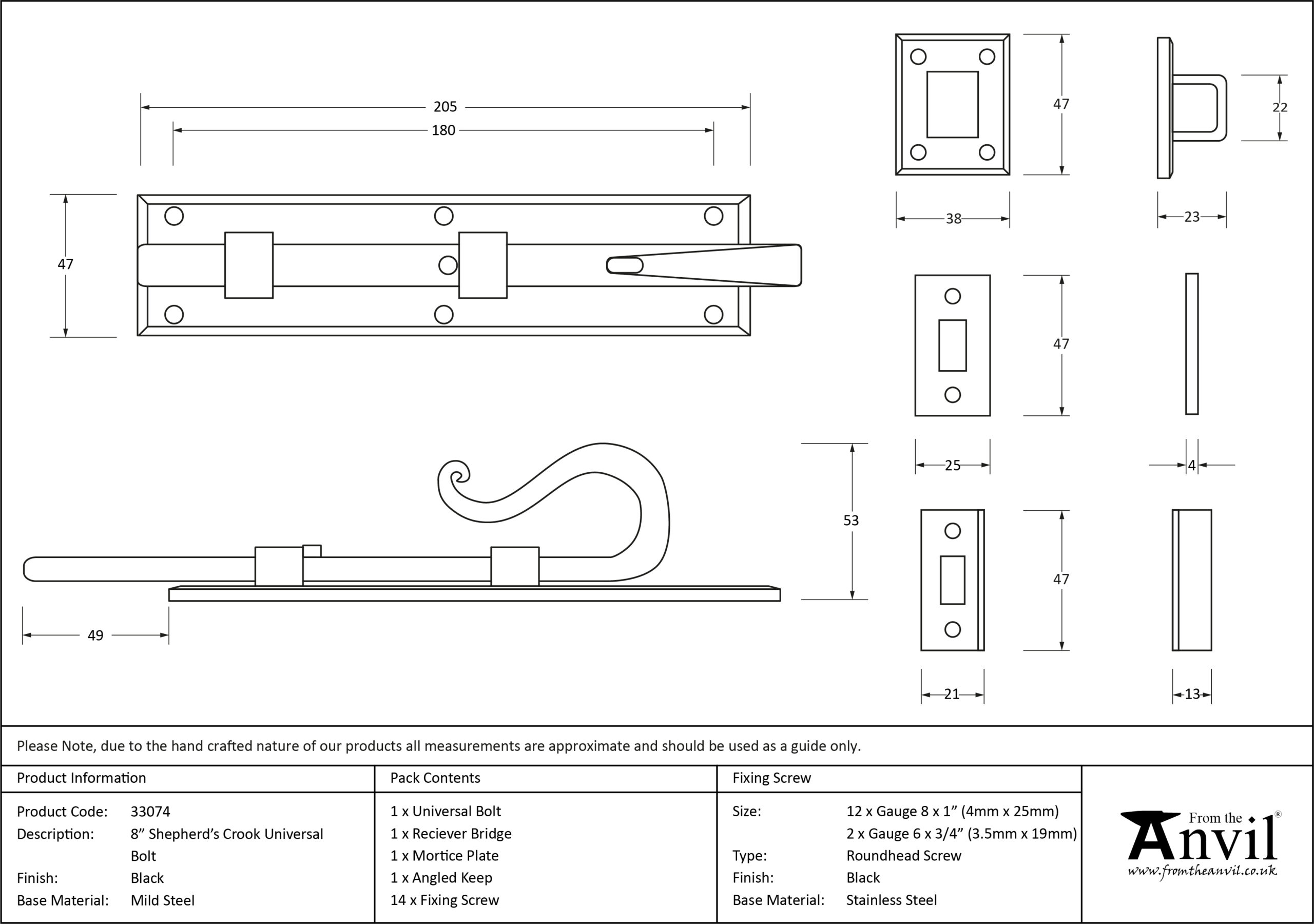

Fixing Plate: 205mm x 47mm x 5mm
Receiver Plate: 47mm x 26mm x 3mm
Receiver Bridge: 47mm x 38mm x 5mm (Height: 23mm)
Angled Keep: 47mm x 25mm x 1mm (Depth: 10mm)
Throw: 49mm

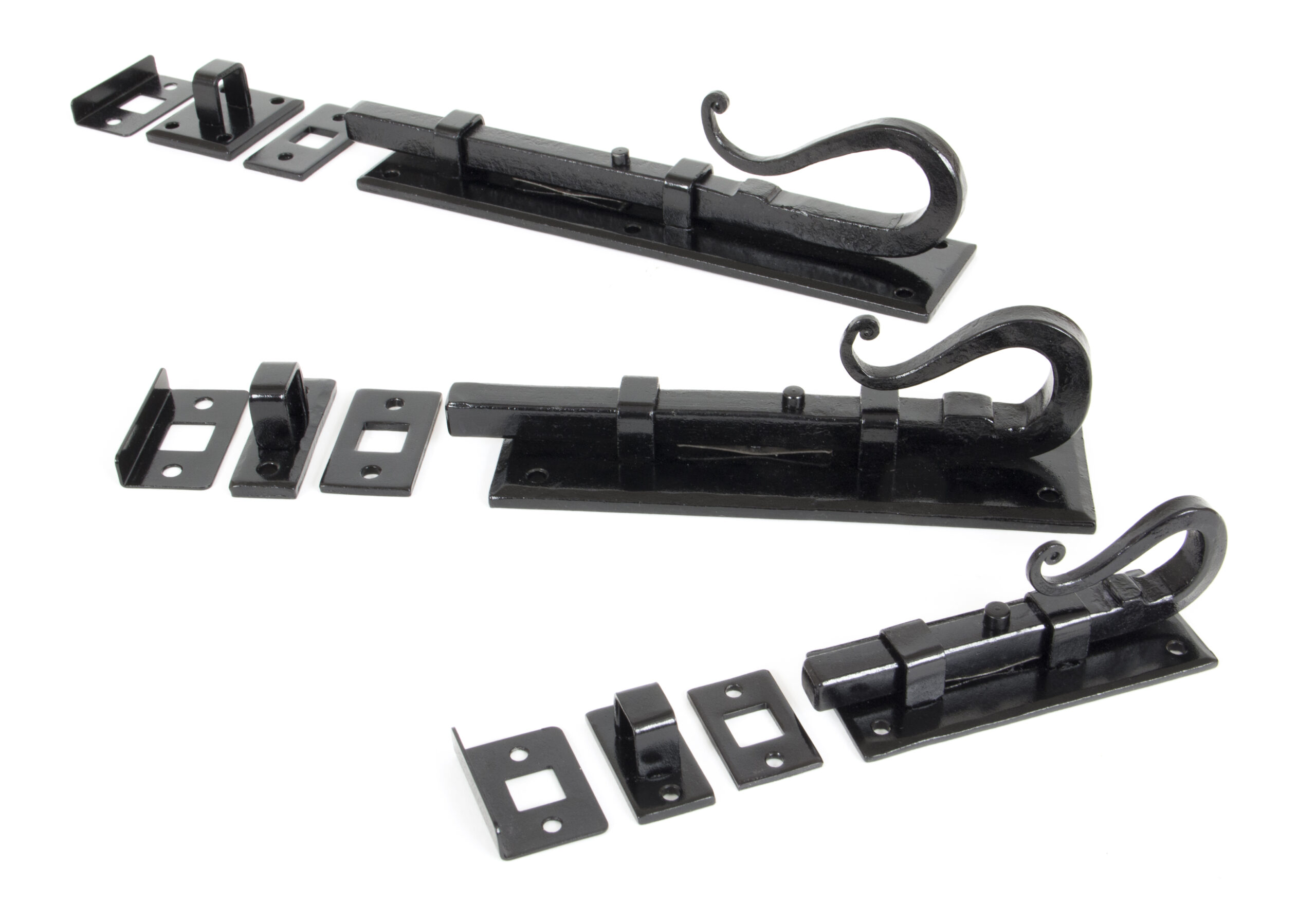

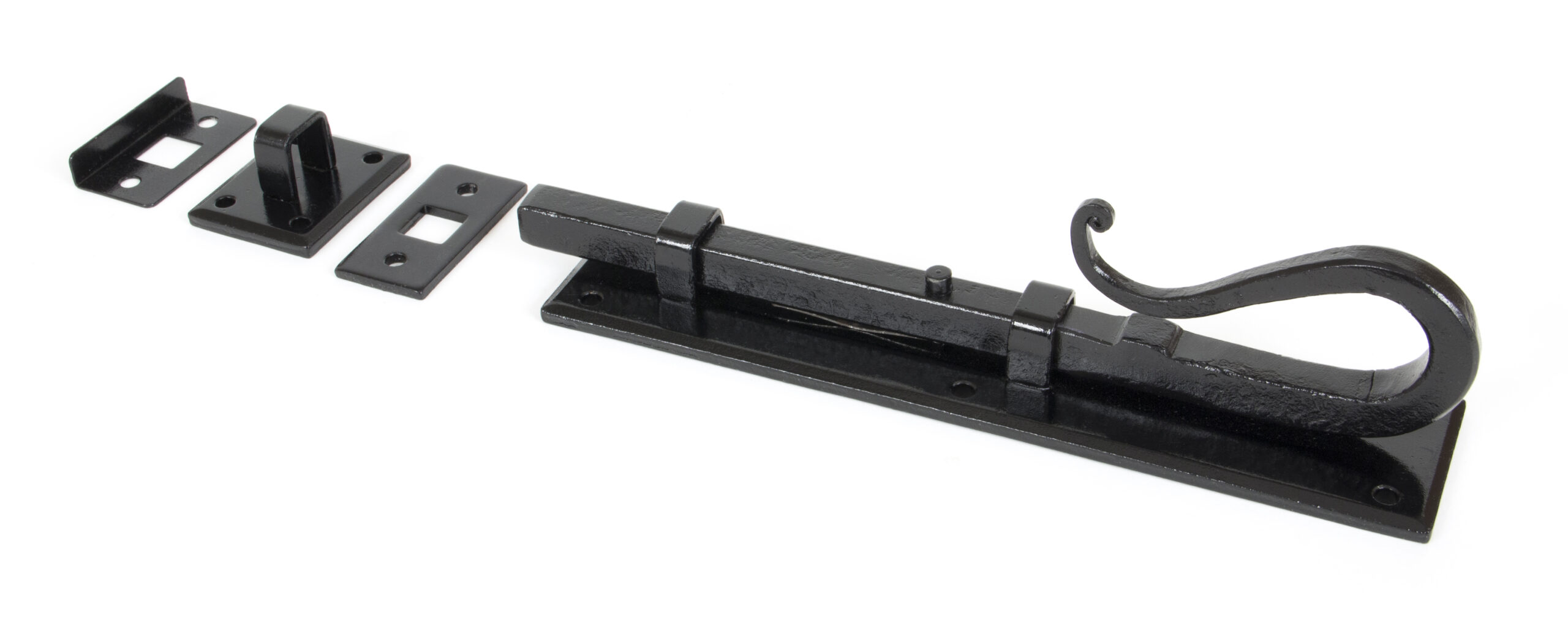

A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product. Designed to match the shepherd’s crook window furniture in the range. Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts. Supplied with matching SS wood screws.
Finish: Black
