From The Anvil BZP LH French Lock Kit for 2140mm – No Slave Handle – 91893

For use with our 92mm centre espagnolette locking handle sets.

Master Lock: 20mm Face Plate
Backset: 45mm
Centre: 92mm
Slave Lock: 26mm Face Plate
Min Length: 1997mm
Max Length: 2140mm

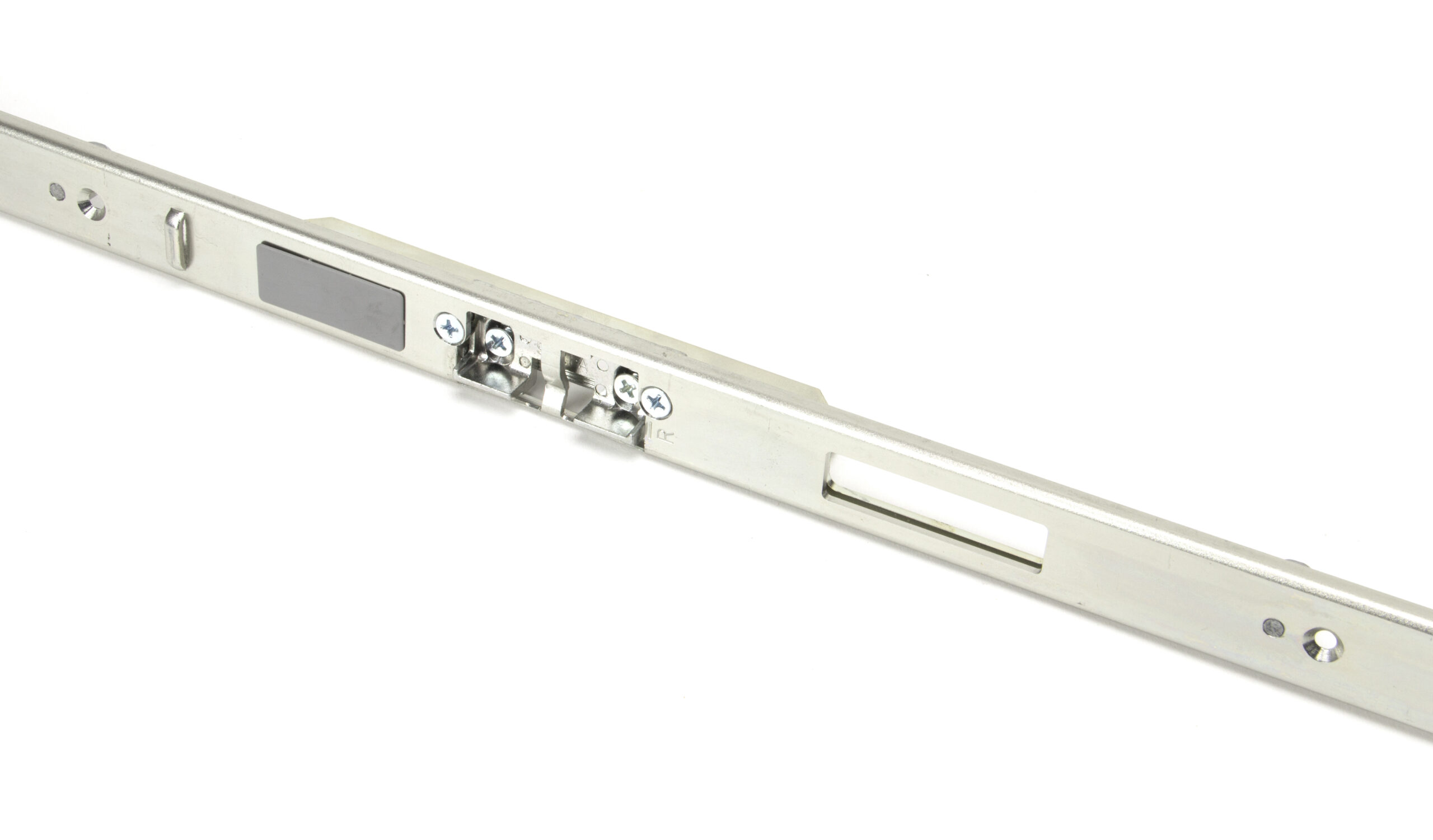

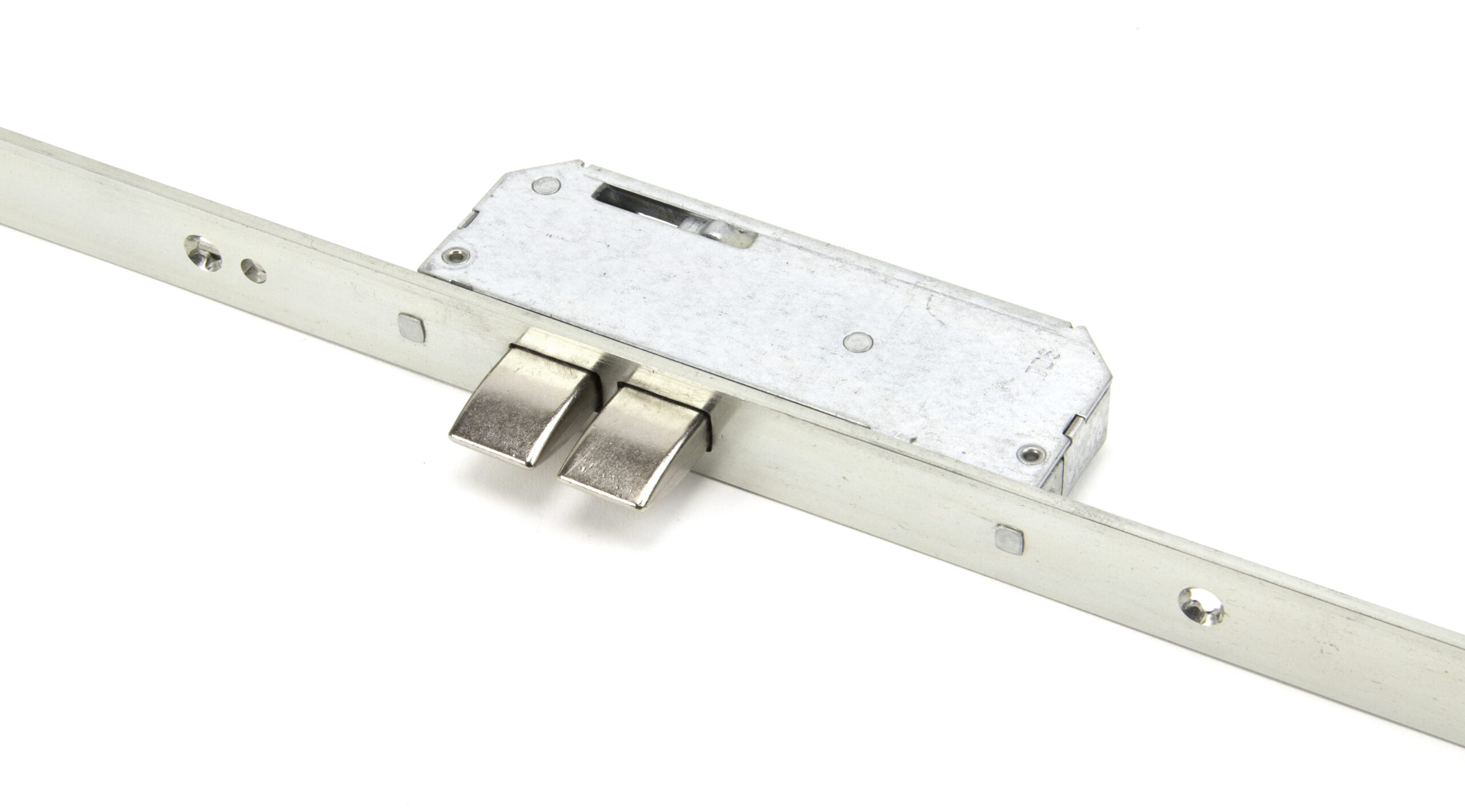

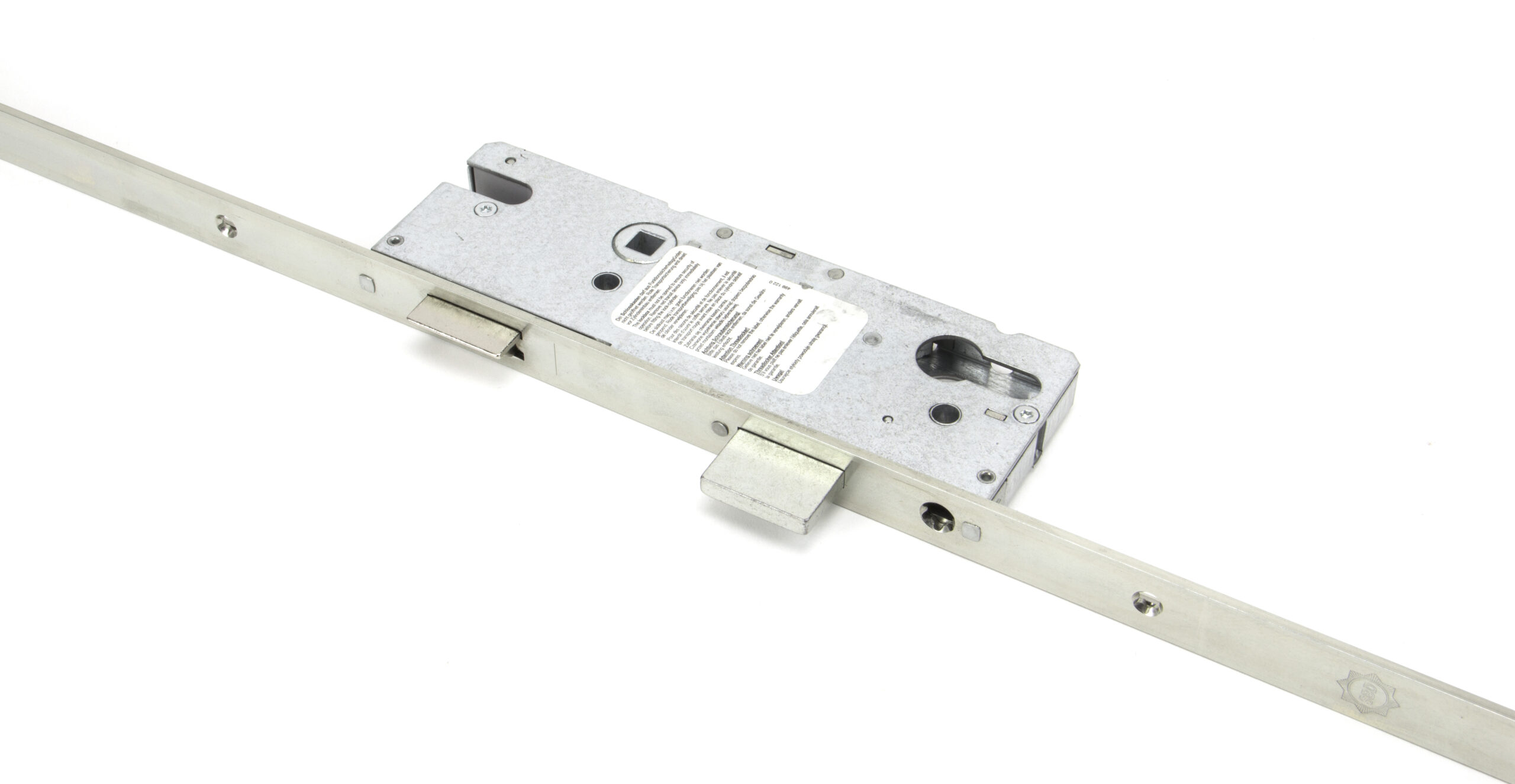

Kit includes: Master lock, slave lock, top bolt (for slave lock), top & bottom keeps. The slave lock is operated by a flush, integrated two-way lever which throws two heavy duty 20mm shootbolts into the head and sill. Please note 1 x euro cylinder needs to be purchased separately.

Finish: BZP
