For both replacement period doors and prestige new build doors.

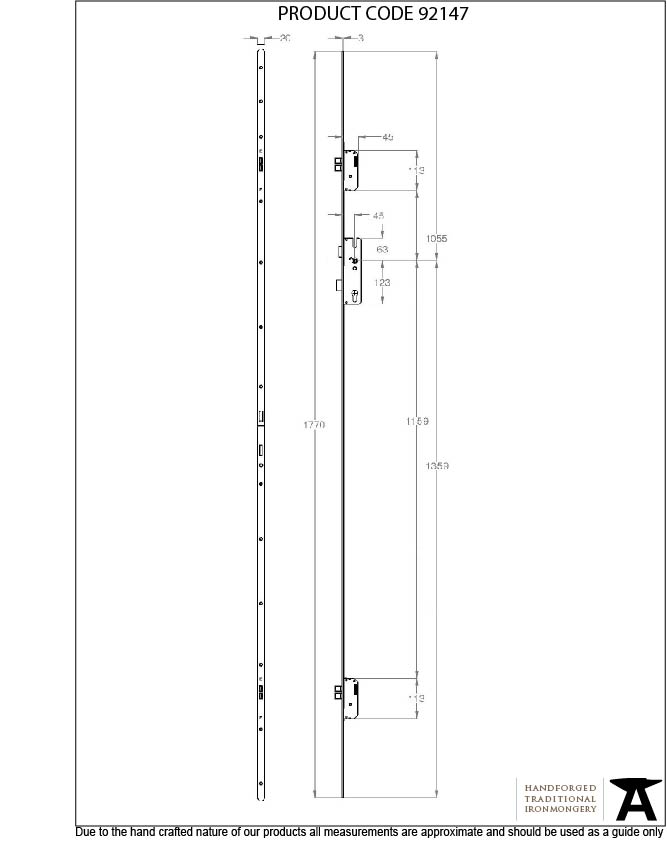

Overall Height: 1770mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Deadbolt Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm
Can be paired with our euro door pulls to pull or push the door into the open/closed position. Simply operated with just a euro profile thumbturn cylinder which is located ay approx. 2/3 of the door height to replicate the rim locking night latch found on traditional doors. An external lever handle is not required to operate the locking points and the lock can be deadlocked or opened externally by turning the key through 270°. Please note 1 x euro profile thumbturn cylinder needs to be purchased separately.
Finish: BZP
