For use with our 92mm centre espagnolette locking handle sets.

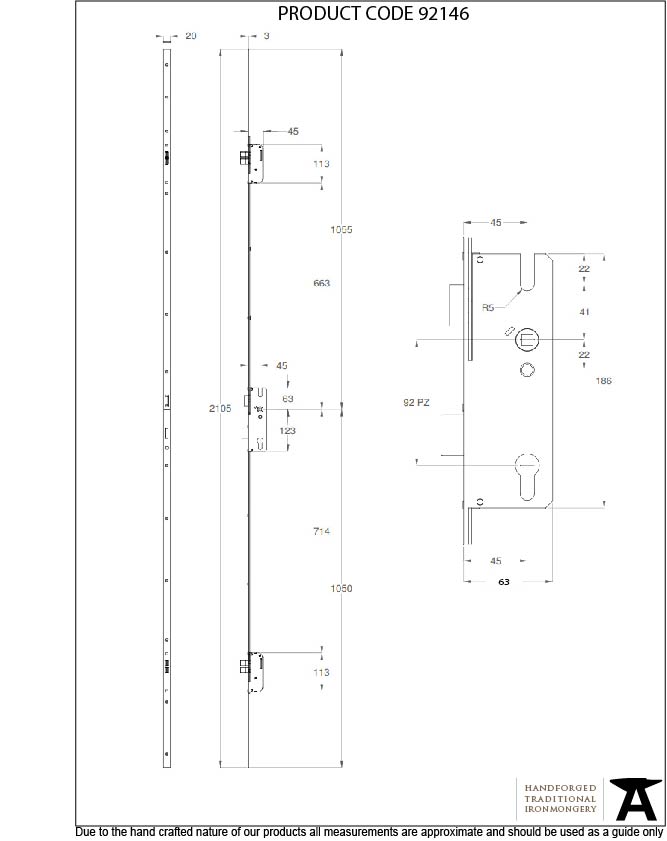

Overall Height: 2105mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Deadbolt Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm
Min/Max Door Height: 1925mm – 2105mm
Solid twin tapered deadbolts in the upper and lower positions. 50% greater fitting tolerances compared to conventional hook locking systems. Min/max door height: 1925mm/2105mm. Please note 1 x euro cylinder needs to be purchased separately.
Finish: BZP
