When opened a tee hinge has the appearance of a letter ‘T’. An alternative to butt hinges, tee hinges are usually used in conjunction with a suffolk latch on traditional plank doors.

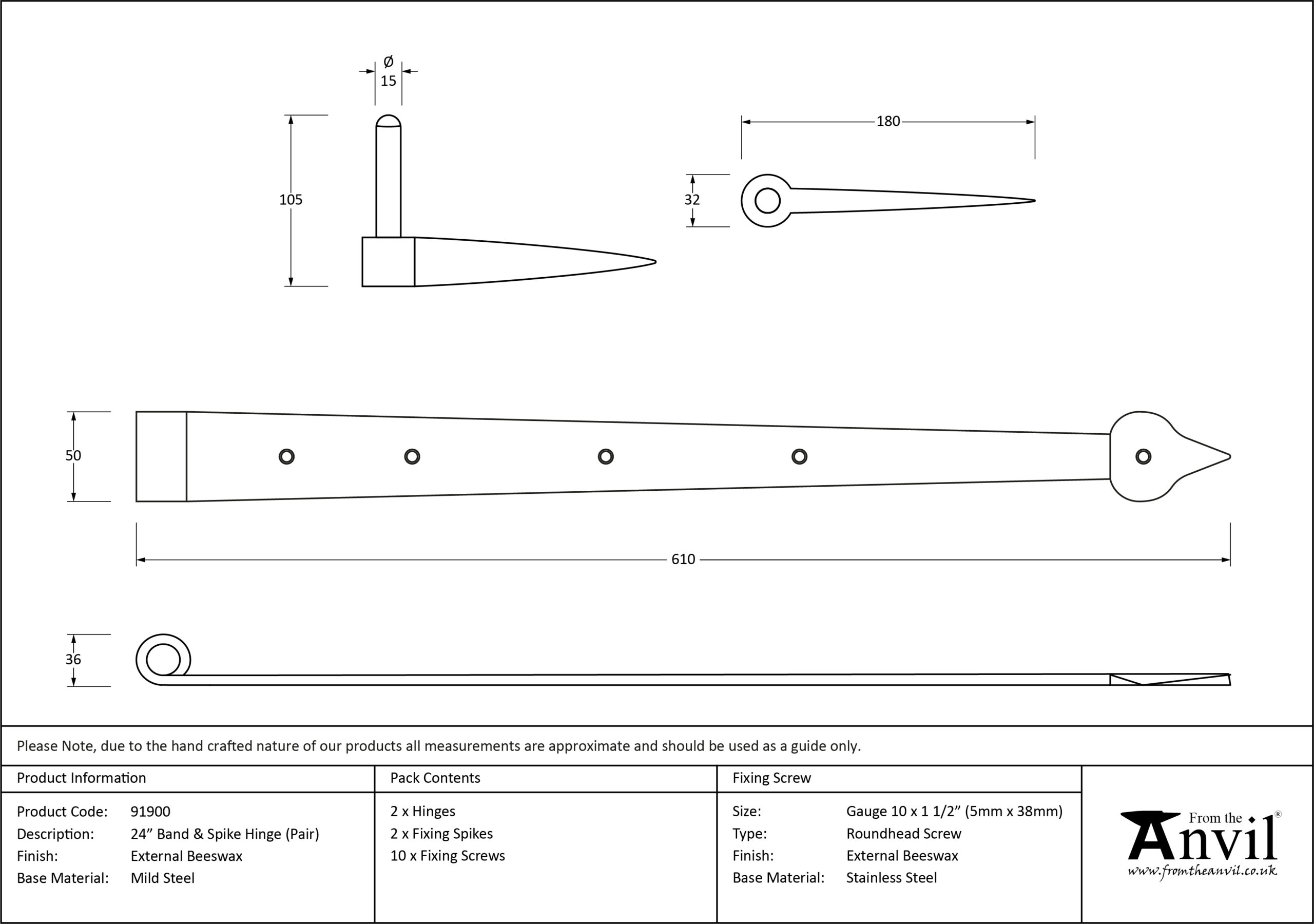

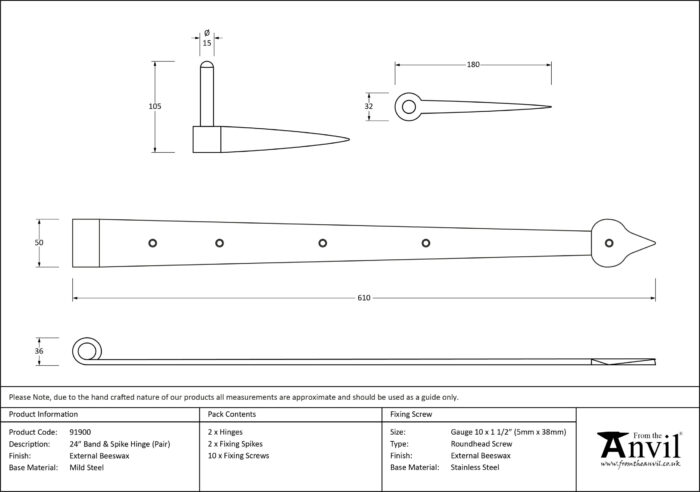

Overall Length: 610mm
Hinge Arm: 582mm
Spike Overall: 190mm
Spike Length: 158mm
Pin Overall: 102mm
Pin Diameter: 15mm

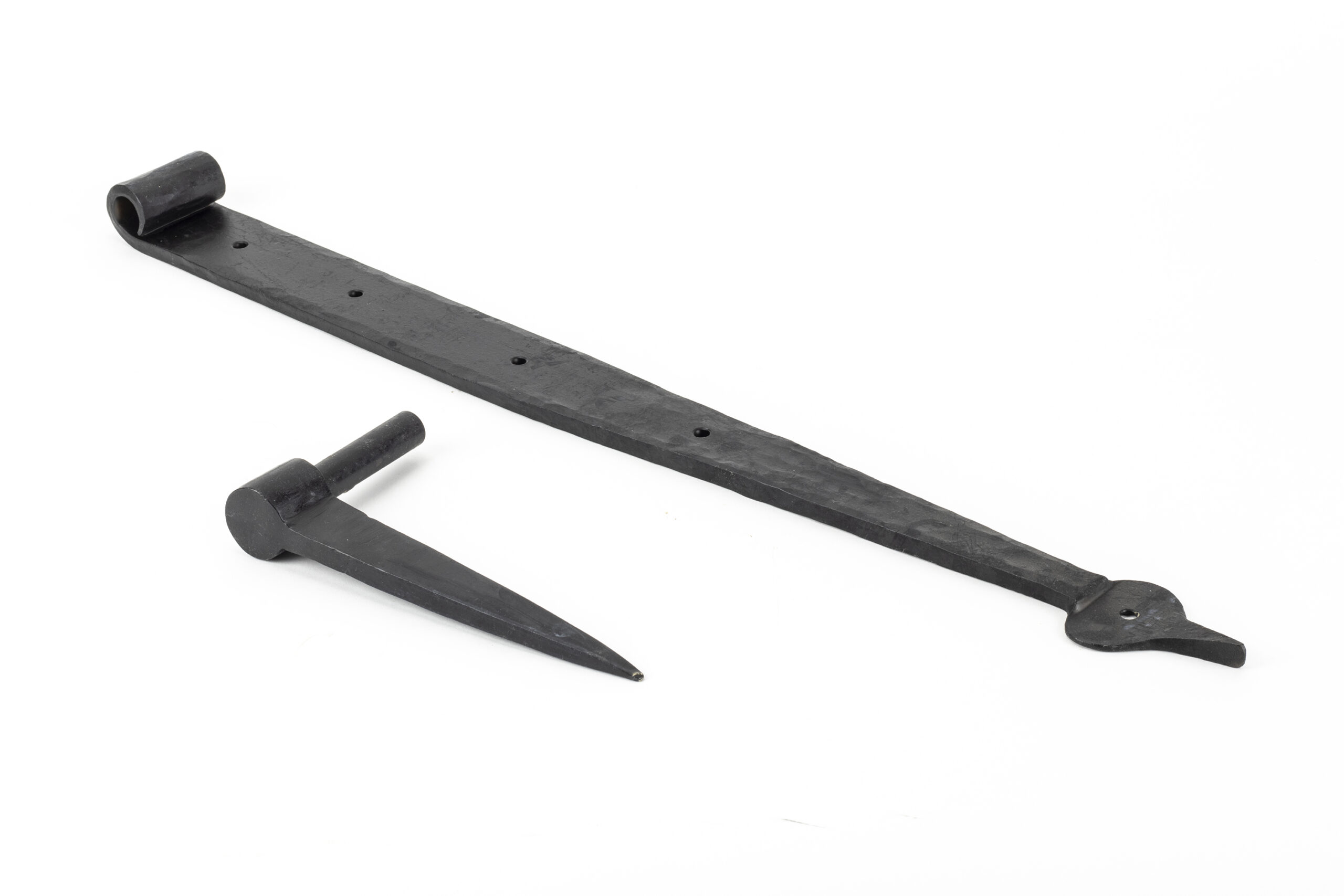

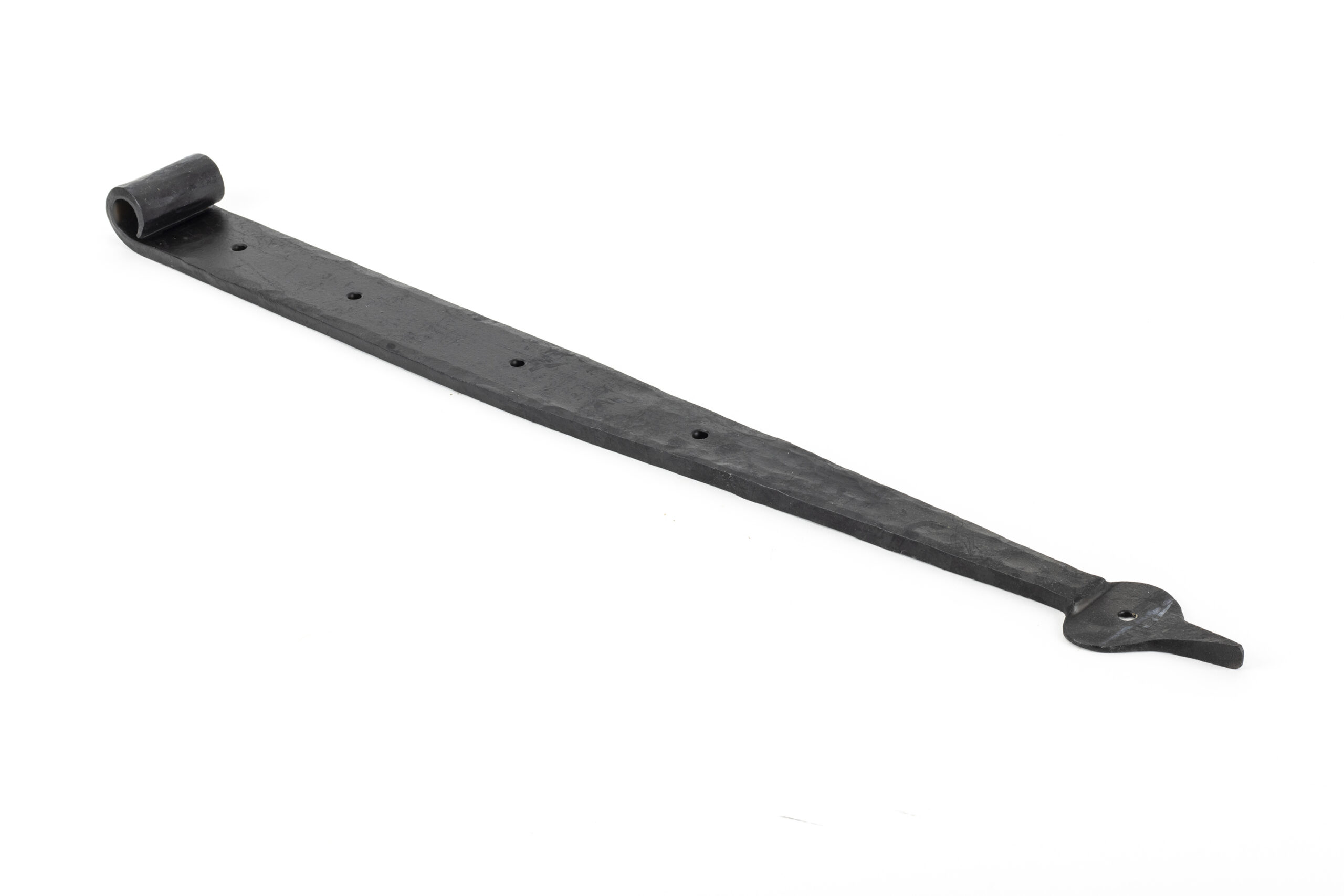

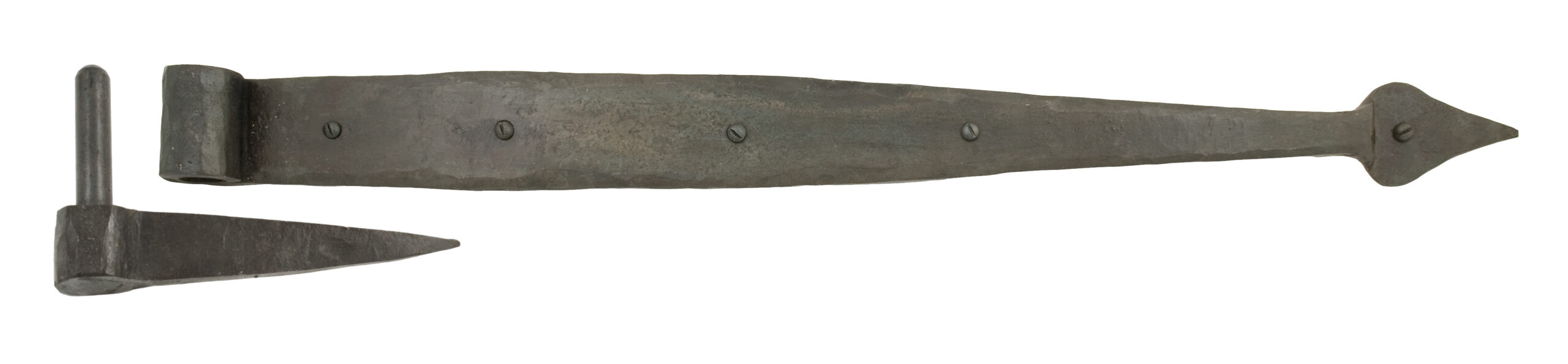

Our blacksmith tee hinges are hammered into shape from mild steel using the traditional manufacturing method of an anvil and fire. Band is hinged on a pin which is driven into fixture using the spike. Drill a series of pilot holes to fix the spike. Suitable for heavy doors and gates. Supplied as a pair. Supplied with matching SS wood screws.
Finish: External Beeswax
